hey there fellows have you ever thought
0:02
about why those skyscrapers don't just
0:04
topple over like really isn't that amuse
0:06
you or well how those bridges spanning
0:09
enormous kind of like River manage to
0:11
stay afloat without any hitch yeah and
0:14
hey why do some buildings are made with
0:15
a wood While others go all in with seal
0:18
and stuff like glass pretty simple right
0:20
well it's all about the way they're put
0:22
together really now let me ask how do
0:25
those genius Minds designing things
0:27
figure out which materials to use or
0:29
maybe like how tall a building can
0:30
stretch or where's the perfect spot to
0:32
plop down a ridge that's what the magic
0:34
of engineering is for you landies
0:37
Engineers real Wizards I mean real
0:39
Wizards design all sorts of stuff from
0:41
buildings and dams to airplanes cars and
0:44
you can go old like really big chairs
0:46
and bicycle frames they've got one main
0:48
mission and what that is yes make things
0:51
so that they can handle the weight and
0:53
push back against forces trying to tear
0:55
them apart simple and straight so let's
0:58
chat about forces for me a force is like
1:00
the muscle needed to push or pull an
1:02
object around I know that's not kind of
1:04
definition you read a text but hey
1:06
that's the actual thing now Engineers
1:08
dive into the nitt gritt they're all
1:10
about the loow or external forces acting
1:12
on a structure it's like an inside out
1:14
tug of war external forces try to shake
1:16
things up but internal stresses those
1:18
inner forces resist and keep everything
1:20

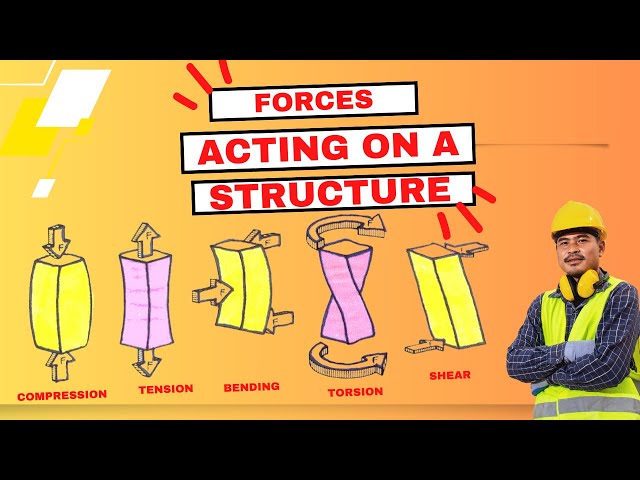

glued together so there are five pretty
1:23
cool types of loads Engineers play it
1:24
with and that is tension compression
1:26
Shear bending and torsion so in our
1:30
today's video we'll break down the
1:31
forces acting on structures the pretty
1:33
Basics tension two pulling opposing
1:37
forces that stretch an object trying to
1:39
pull it apart for example pulling on a
1:41
rope a car towing another car with a
1:43
chain the rope and the chain are
1:45
intention or are being subjected to a
1:49
load compression to pushing opposing
1:52
forces that squeeze an object trying to
1:54
compress it for example standing on a
1:57
soda can squeezing a piece of wood in
1:59
aice both the can and the wood are in
2:02
compression or are are being subjected
2:04
to a compressive load sheer two pushing
2:07
or pulling adjacent forces acting close
2:10
together but not directly opposing each
2:12
other a shearing blood Cuts or rips an
2:14
object by sliding its molecules apart
2:16
sideways for example proving Shooters
2:19
cutting through a branch paper cutter
2:21
cutting paper the branch and paper are
2:23
subjected to a sheer loading another
2:25
example pulling on two pieces of wood
2:28
that have been glued together the blue
2:30
joint is being subjected to a sheer
2:31
loading a moment of a force
2:34
understanding a moment of a force is key
2:36
to understanding the last two types of
2:38
loads a moment is a turning Force caused
2:40
by a force acting on an object at some
2:43
distance from a fixed Point consider the
2:45
diving board sketch the heavier the
2:47
person force and the farther they walk
2:50
out on the board distance the greater
2:52
the Turning Force which acts on the
2:54
concrete foundation fix point the
2:56
stronger the force and the greater the
2:58
distance at which it acts the larger the
3:00
moment or turning force it will produce
3:03
a moment or turning Force m is
3:05
calculated by multiplying a force F by
3:08
its moment alarm D the moment alarm is
3:11
the distance at which the force is
3:12
applied taken from the fix Point bending
3:16
when a moment or turning force is
3:18
applied to a structural membran that is
3:20
fixed on both ends such as a pole beam
3:22
making it deflect or bend a moment that
3:25
causes bending is called a bending
3:27
moment bending produces tension and
3:29
compression inside a beam or a pole
3:31
causing it to smile the molecules on the
3:33
top of the smile get squeezed together
3:35
while the molecules on the bottom of the
3:37
smile get stretched out a beam or pole
3:40
in bending will fail in tension break on
3:42
the side that is being pulled apart for
3:44
example a shelf in a bookcase and the
3:47
earlier diving board scenario torsion
3:50
twisting created when a moment or
3:52
turning force is applied to a structural
3:54
member or piece of material making it
3:57
deflect at an angle twist a moment that
4:00
causes twisting is called a twisting or
4:02
torsional moment torsion produces sheer
4:04
stresses inside the material a beam in
4:07
torsion will fail and Shear the twisting
4:09
action causes the molecules to be slid
4:11
apart sideways for example a pole with a
4:14
sign hanging off one side understanding
4:17
the moment of a force which is a turning
4:18
Force caused by a force acting at a
4:20
distance from a fixed point is essential
4:23
for comprehending bending and torsion
4:25
the strength of the force and the
4:26
distance at which it acts determine the
4:28
magnitude of the moment or turning force
4:30
in essence Engineers navigate the
4:32
intricate world of forces loads and
4:34
moments to craft structures that stand
4:36
tall endure and serve their intended
