Types of Belt Drive: Material, Applications, Advantages & Disadvantages

by

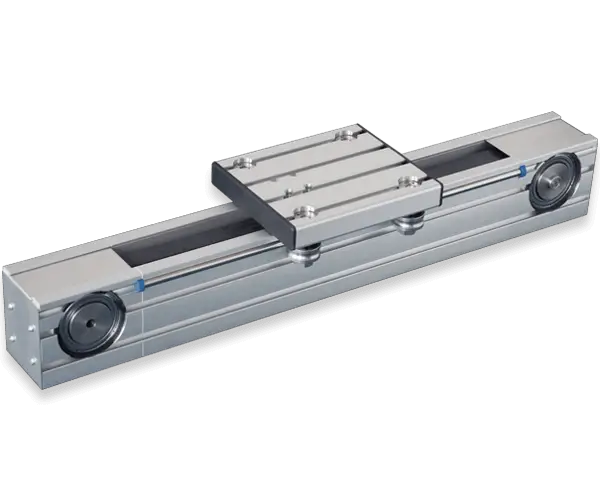

Belt drives are mechanisms that use flexible belts to transmit power between different parts of a machine. They are commonly used in engines and machines to transfer rotational motion from one component to another. A belt is a looped strip of flexible material that connects rotating shafts.

Table of Contents

Types of Belt Drives

There are five main types of belt drives:

  1. Open Belt Drive: In this type, the driving and driven pulleys rotate in the same direction. The shafts are parallel, and there’s a slack side and a tight side of the belt.
  2. Crossed Belt Drive: The driving and driven pulleys rotate in opposite directions, which can cause rubbing and wear. Keeping the pulleys farther apart and running at lower speeds helps reduce wear.
  3. Fast and Loose Cone Pulley: This has two pulleys, one fixed and one loose on the shaft. It’s used to control power transmission to multiple machines.
  4. Stepped Cone Pulley Drive: Multiple pulleys of different sizes are attached for changing speeds, useful in machines like lathes.
  5. Jockey Pulley Drive: A pulley used to increase contact angle, enhancing power transmission. It’s placed near the smaller pulley.

Also Read: The Essential Guide to Metal Cutting Machines in Construction

Applications of Belt Drives

Belt drives are used in various applications, including power transfer, milling, and conveyor systems. They’re cost-effective, quieter than chain drives, and don’t need lubrication.

Different Types of Belts

Belts come in four types:

  1. Flat Belt Drive: Rectangular belts for low-power, high-speed situations. They rely on friction for power transfer.
  2. V Belt Drive: Trapezoidal belts for moderate power and speed. Can handle multiple drives.
  3. Circular Belt Drive: Circular cross-section belts for high-power transmission over longer distances.
  4. Timing Belt Drive: Precise belts with positive drive for systems requiring accuracy.

Materials Used in Belt Drives

Belts are made from different materials, each with unique properties:

  1. Leather Belt: Strong, used for high-quality applications.
  2. Rubber Belt: Fabric and rubber construction, common in various industries.
  3. Cotton or Fabric Belt: Affordable, suited for farm machinery and warm climates.
  4. Plastic Belt: Customizable sizes, useful in specific requirements.
  5. Balata Belt: Strong and waterproof, resistant to chemicals.

Advantages of Belt Drives

  • Easy installation and removal.
  • Affordable.
  • Simple construction.
  • Low maintenance.
  • No need for additional lubrication.
  • Can transfer power in different directions.

Disadvantages of Belt Drives

  • Power loss due to slip and creep.
  • Limited for very short distances.
  • Speed limitations.
  • Breakage can occur.
  • Temperature restrictions.

Slip and Creep in Belt Drives

  • Slip: When the belt slips on the pulley due to insufficient friction.
  • Creep: Elastic belt property causing relative motion between the belt and pulley surfaces.

Chain Drive Comparison

Chain drives are similar but use metal chains for power transfer. They’re stronger and louder than belt drives and often need lubrication.

Understanding the types, advantages, and disadvantages of belt drives helps in choosing the right power transmission method for various applications.

Uses of Belt Drives

  • Belt drives play a role in moving power from one spinning shaft to another through a flexible belt. Let’s look at where belt drives are commonly used:
  • Factories and Machinery: Belt drives are found in various machines like conveyor systems, pumps, fans, and compressors used in factories. They connect shafts, making machines work smoothly and flexibly.
  • Cars and Trucks: In vehicles, belt drives operate parts like alternators, water pumps, and power steering pumps. They’re also seen in timing belts that keep engines running in sync.
  • Farming Equipment: Belt drives power tools in farming machines like combine harvesters. These tools include the grain mover and straw cutter.
  • Home Gadgets: Belt drives are present in appliances like washing machines, dryers, and vacuum cleaners. They move parts like drums, blowers, and brush rolls.
  • Exercise Gear: Equipment such as stationary bikes and treadmills rely on belt drives to transfer power from the motor to the exercise parts. This ensures smooth and quiet workouts.

In essence, belt drives are versatile tools for moving power across many areas. They absorb shocks, work at high speeds, and provide smooth, quiet action, making them popular for various industries.
